Pneumatic Rescue Boat That Launches in 8 Minutes and Carries 14 to 15 People
|
What Is a Pneumatic Rescue Boat?

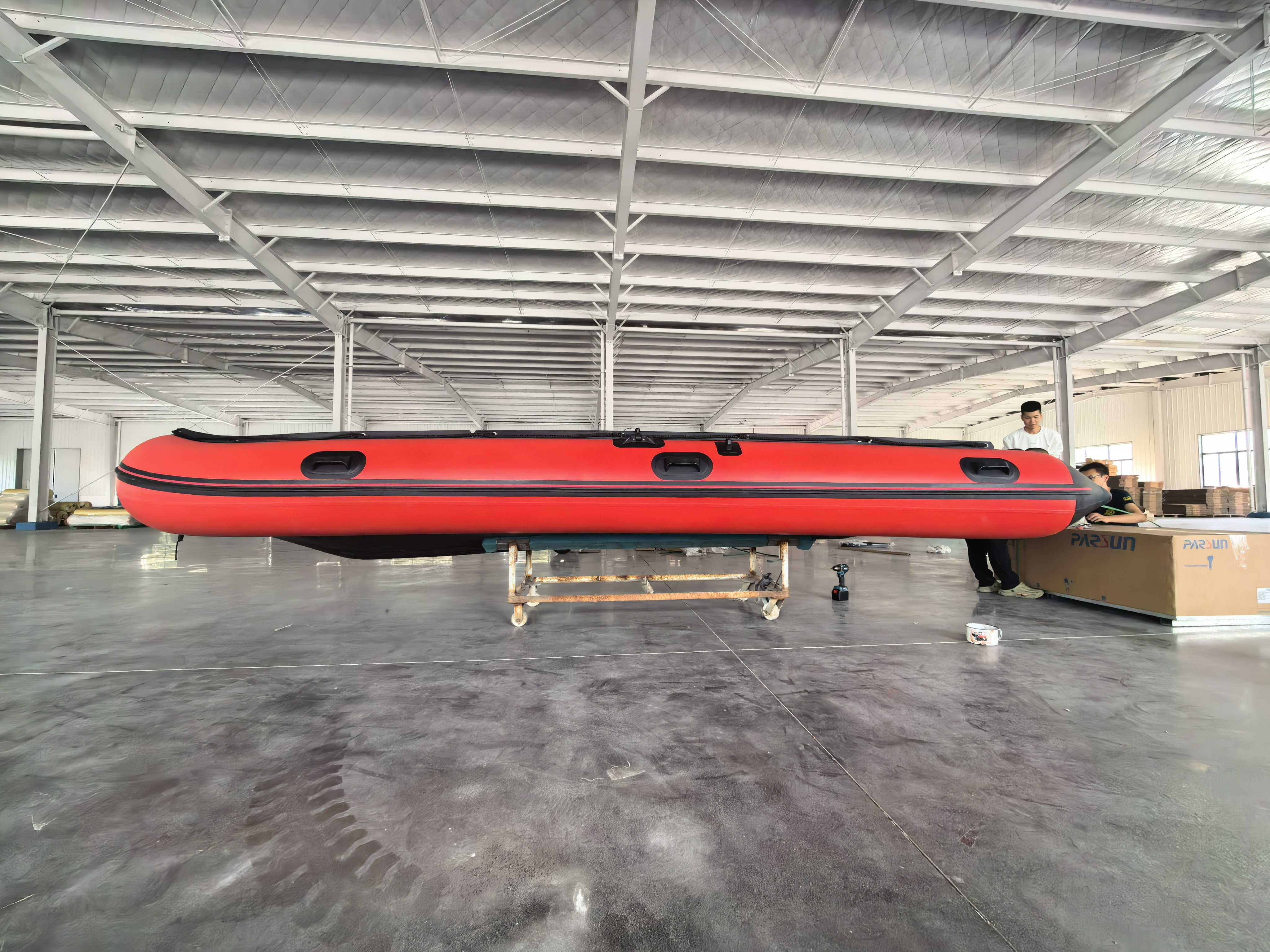

A pneumatic rescue boat is an air-filled boat that inflates on site and packs small for transport. CWTC's model is a 550 cm flood rescue boat with a 1.2 mm PVC hull, 5+1 air chambers and an aluminum alloy floor. Fire, police, relief and marine survey teams use it as an inflatable rescue boat that one or two people can set up in about 8 minutes.
Key Features of the Pneumatic Rescue Boat
Built for rescue crews that must launch fast, carry a full load and keep working in salt water.
|
01
1.2 mm PVC Hull Built for Salt, Sun and Rough BanksThe hull and air chambers use 1.2 mm PVC fabric, with 0.9 mm available on request. The fabric resists abrasion, salt-alkali, sunlight and ageing, so it holds up on rough banks and in seawater. Crews can run repeated flood, coastal and patrol missions with fewer hull repairs, and a 12-month warranty covers the whole boat. |
|
02
5+1 Air Chambers with Internal BafflesThe boat has 5+1 air chambers with 50 cm side tubes, inflated to at least 20 kPa. Internal baffles seal each chamber and balance pressure between sections. With the hull rated for 14 to 15 people, rescuers get a steady platform when they pull someone from the water. |
|
03
14 to 15 People, 1,400 kg Load, 40-60 HP PowerAt 550 cm by 200 cm, the boat carries 14 to 15 people or 1,400 kg and takes a 40 to 60 HP outboard motor. Its deck fits a rescue team with gear, or a full group of evacuees. One boat moves more people per trip, so fewer crossings are needed in a flood zone. |
|
04
Ready in About 8 Minutes with Two PeopleAn electric air pump inflates the boat in about 8 minutes, and one or two people can unfold it. The packed boat measures 136 x 81 x 50 cm. Teams can launch soon after they reach the water's edge, and one 40HQ container holds 75 sets, which suits stocking many rescue stations. |
|
05
Bonded Tubes and a Sealed Birch TransomTubes are bonded with a special adhesive, and fittings use polyurethane glue that resists heat and cold. The high-density birch transom carries three layers of putty, three coats of anti-corrosion paint and a PU topcoat against seawater, sun and fuel. Your outboard mount stays protected where the boat takes the most punishment. |
Technical Specifications of the Pneumatic Rescue Boat
Choose a tab to see the parameters, third-party test data or ordering terms. Fabric test data covers boat fabric of 0.93-0.95 mm measured thickness.
| Size and capacity | |
|---|---|
| Product | Pneumatic Rescue Boat |
| Typical use | Flood rescue, emergency rescue, fire and armed police operations, marine survey |
| Overall length | 550 cm |
| Overall width | 200 cm |
| Side tube diameter | 50 cm |
| Air chambers | 5+1, with internal baffles between sections |
| Inflation pressure | Min. 20 kPa |
| Capacity | 14 to 15 people |
| Maximum load | 1,400 kg |
| Net weight | 150 kg |
| Recommended outboard motor | 40 to 60 HP |
| Materials and build | |
|---|---|
| Hull and chamber material | 1.2 mm PVC (0.9 mm available) |
| Floor | Thickened aluminum alloy floor |
| Transom | High-density birch plywood; 3 layers of putty, 3 coats of anti-corrosion paint, PU topcoat |
| Bonding | Special adhesive for tubes; polyurethane glue for fittings, resistant to heat and cold |
| Color options | Black, red, yellow, dark blue, sky blue, orange, light gray, dark gray |
| Setup and standard kit | |
|---|---|
| Setup time | About 8 minutes with an electric air pump |
| Setup crew | 1-2 people to unfold the boat before inflation |
| Standard accessories | 1 boat; 1 thickened aluminum alloy floor set; 2 thickened corrosion-resistant aluminum alloy paddles; 2 seat boards; 1 canvas carry bag; 1 foot-operated air pump; 1 repair tool set; logo printing free of charge |
| Test item | Method | Result |
|---|---|---|
| Mass per unit area | FZ/T 60003-1991 | 1,150.96 g/m² |
| Tensile strength | GB/T 1040.3-2006 | 78.6 MPa (average of 5 specimens) |
| Elongation at break | GB/T 1040.3-2006 | 32% (average of 5 specimens) |
| Abrasion resistance | GB/T 30314-2013; CS-17 wheel, 500 g load, 500 r | Surface marks on both faces; no wear damage |
| Chemical resistance | QB/T 4043-2010; engine oil, 4 h | No cracking, breakage, peeling, swelling, exudation or whitening |
| Burning behavior | GB/T 5455-2014, condition B | After-flame 0 s; after-glow 0 s; damaged length 0 mm; no dripping; cotton not ignited; char and melt after burning |
| Lightfastness | GB/T 16422.2-2014; method A, cycle 1, 20 h | No fading, no deformation |
| Heat ageing | GB/T 2423.2-2008; 70°C, 168 h | No sticking, delamination, fading or deformation |
| Element | Limit (mg/kg) | Result |
|---|---|---|
| Antimony, Sb | 60 | Not detected |
| Arsenic, As | 25 | Not detected |
| Barium, Ba | 1000 | Not detected |
| Cadmium, Cd | 75 | Not detected |
| Chromium, Cr | 60 | Not detected |
| Lead, Pb | 90 | Not detected |
| Mercury, Hg | 60 | Not detected |
| Selenium, Se | 500 | Not detected |
Sources: report HAPER19120127R1 (Jiangsu HAP Testing Service Co., Ltd., CNAS L6760, CMA 171020340088; boat fabric of 0.93-0.95 mm measured thickness) and report MYT20210225303 (Shenzhen Mingyutong Testing Co., Ltd., CMA 2015192403H, completed 2021-02-25; surface of an inflatable boat sample, method GB 6675.4-2014, detection limit 2.5 mg/kg). Some items in the first report fall outside the lab's CNAS or CMA scope, as the report states.
| Procurement information | |
|---|---|
| MOQ | 10 sets |
| Sample lead time | 7 days |
| Bulk lead time | 30-45 days, depending on order quantity |
| Warranty | 12 months on the whole boat |
| Packing per set | 136 x 81 x 50 cm, 136 kg |
| Container loading | 20GP: 26 sets 40HQ: 75 sets |
Optional Accessories for Rescue Missions
Add what your mission needs. Each accessory can be quoted with the boat in one order.
|
SELECT AN OPTION
A · Outboard Motor
B · Polyester Rescue Ladder
C · Searchlight Bracket
D · Rescue Boat Trailer

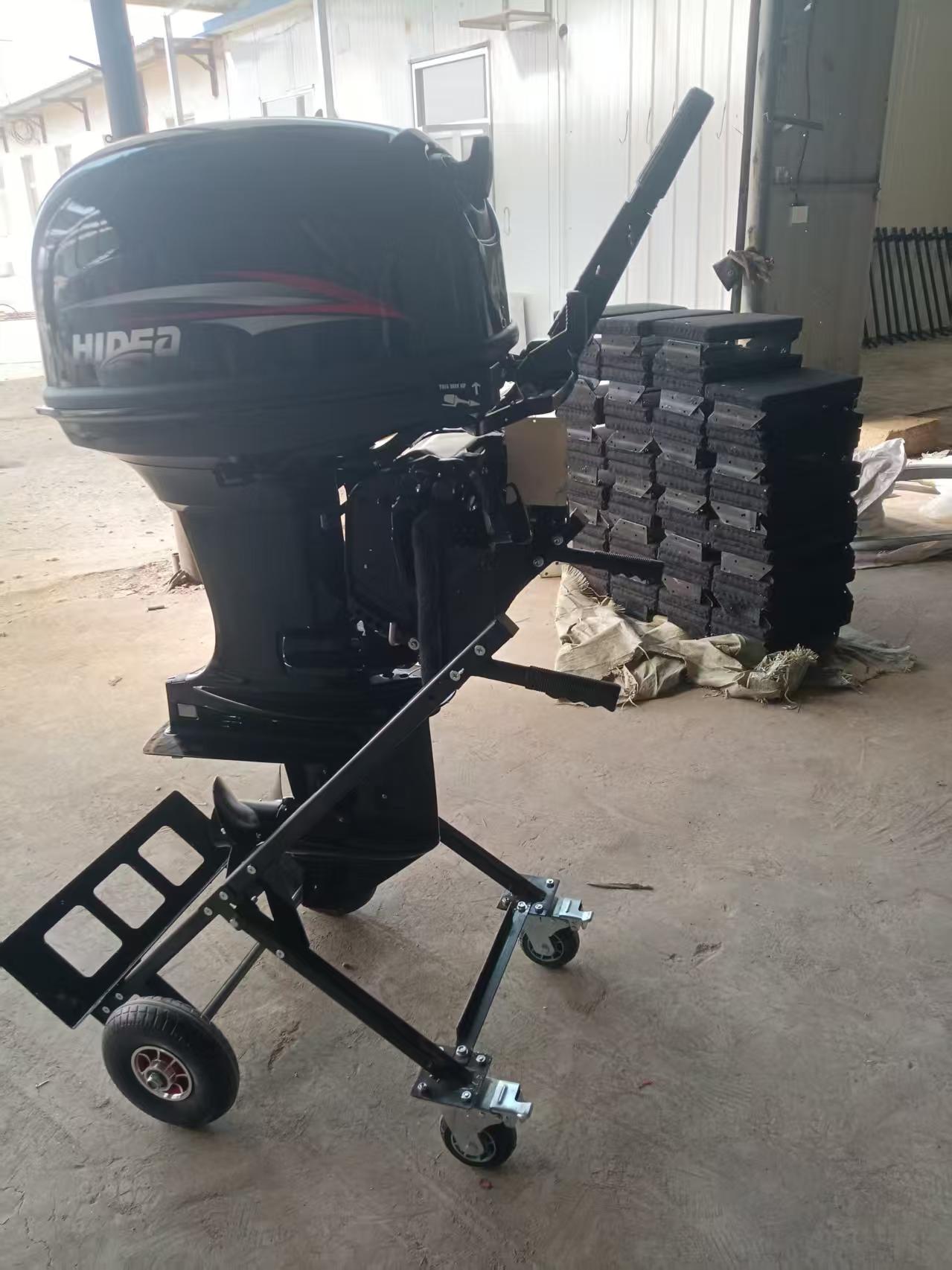

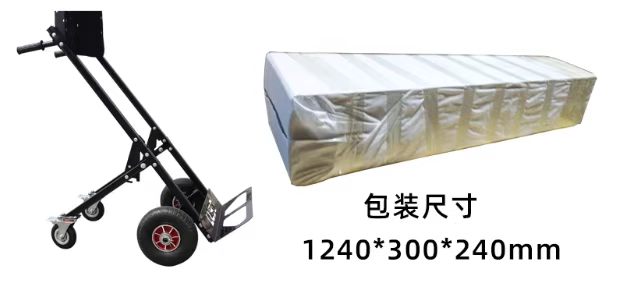

E · Outboard Motor Trolley

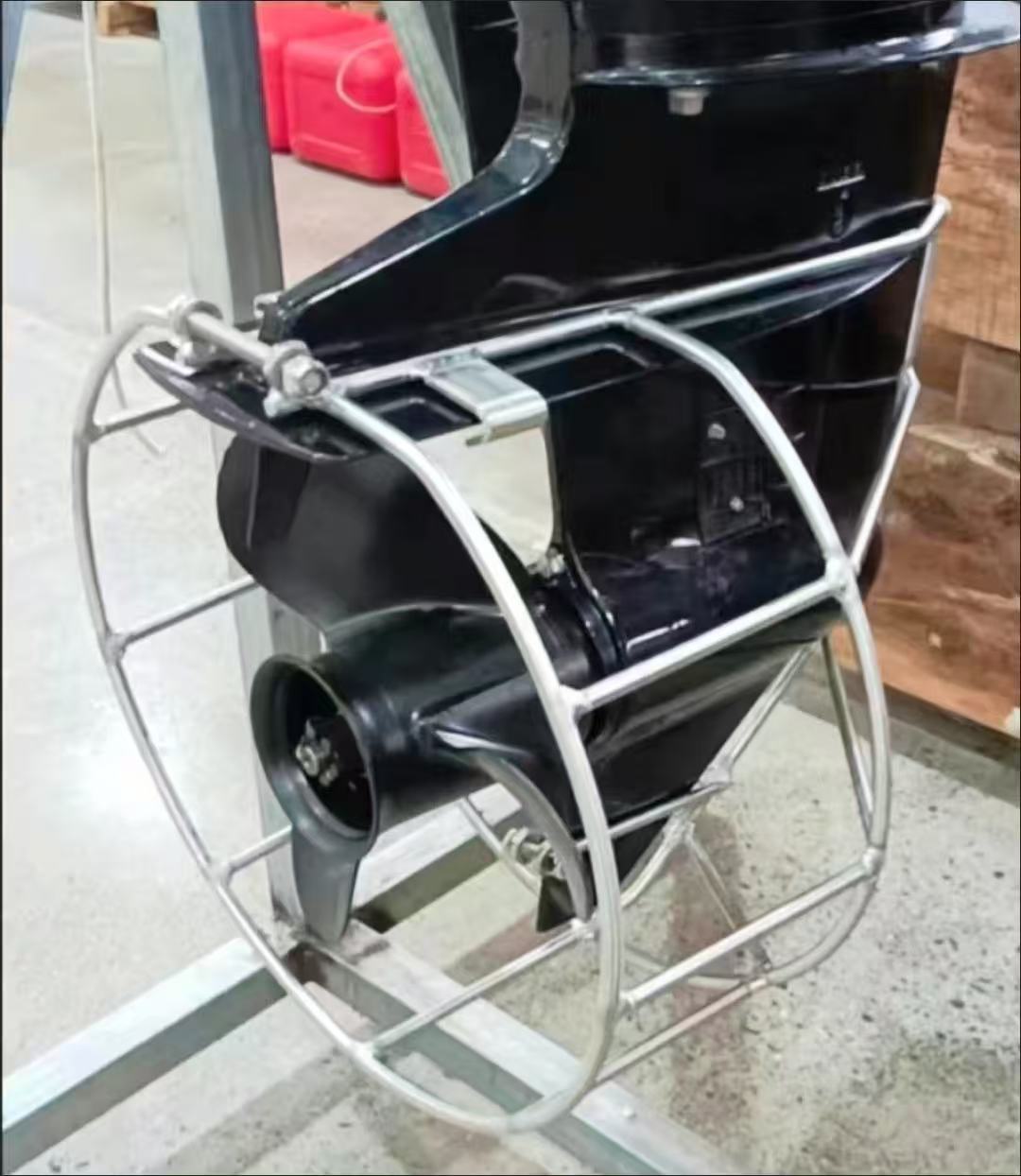

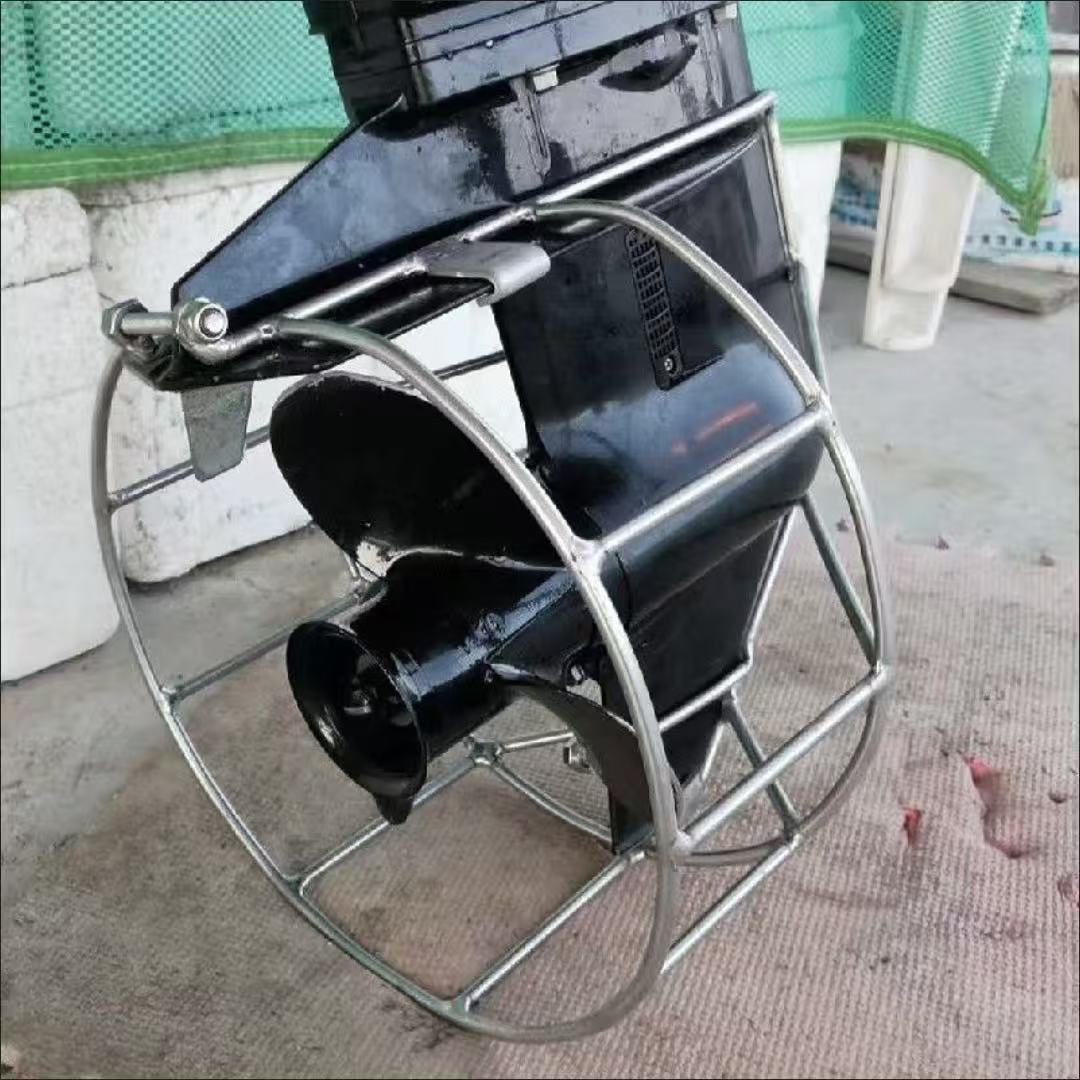

F · Propeller Guard
|
|
|
|
Pneumatic Rescue Boat Walkaround VideoThis video shows the whole boat and its details. Use it to check the build before you request a quote. Want to compare options? See the emergency inflatable boat and the rigid inflatable rescue dinghy, or request a quote for this model. |
Where the Pneumatic Rescue Boat Is Used
|
01
Flood and Urban Inundation RescueFlooded streets cut off roads, and crews need a flood rescue boat that reaches people fast. The pneumatic rescue boat inflates in about 8 minutes and carries 14 to 15 people on a 1.2 mm PVC hull. Teams can begin evacuation soon after they reach the flood edge. |
02
Fire and Armed Police OperationsFire and police teams often launch from banks and docks that were never built for boats. A packed size of 136 x 81 x 50 cm and a setup by one or two people let them carry the boat on a vehicle and prepare it on site. A searchlight bracket and rescue ladder can be added for night work and water recovery. |
03
Marine Survey and Coastal WorkSalt, sun and fuel wear out boat fabric and transoms quickly, and a coastal emergency rescue boat sees all three. The PVC hull resists salt-alkali and sunlight, and the birch transom has three coats of anti-corrosion paint plus a PU topcoat. A 40 to 60 HP outboard is the recommended setup for nearshore runs. |
04
Evacuation and Relief TransportRelief operations must move many people and supplies across water in few trips. The boat takes a load of 1,400 kg, so one run can carry a full group or a stack of supplies. On shore, add inflatable rescue tents and inflatable medical tents for a complete response site. |
Which CWTC Rescue Boat Fits Your Crew?
Choose by crew size and load. The table compares this 5.5 m boat with our inflatable rescue boat. Figures for the smaller boat come from its product page. See also the emergency inflatable boat and the rescue inflatable.
| Factor | Pneumatic rescue boat (this model) | Inflatable rescue boat, 3.8 m class |
|---|---|---|
| Overall length | 550 cm | 380 cm |
| Overall width | 200 cm | 175 cm |
| People on board | 14 to 15 | 8 |
| Maximum load | 1,400 kg | 800 kg |
| Recommended outboard | 40 to 60 HP | 30 HP |
| Hull fabric | 1.2 mm PVC (0.9 mm available) | 0.9 mm double-sided coated PVC |
| Best fit | Larger crews, heavier loads, longer runs | Smaller crews, shallow flooded streets, quick access |

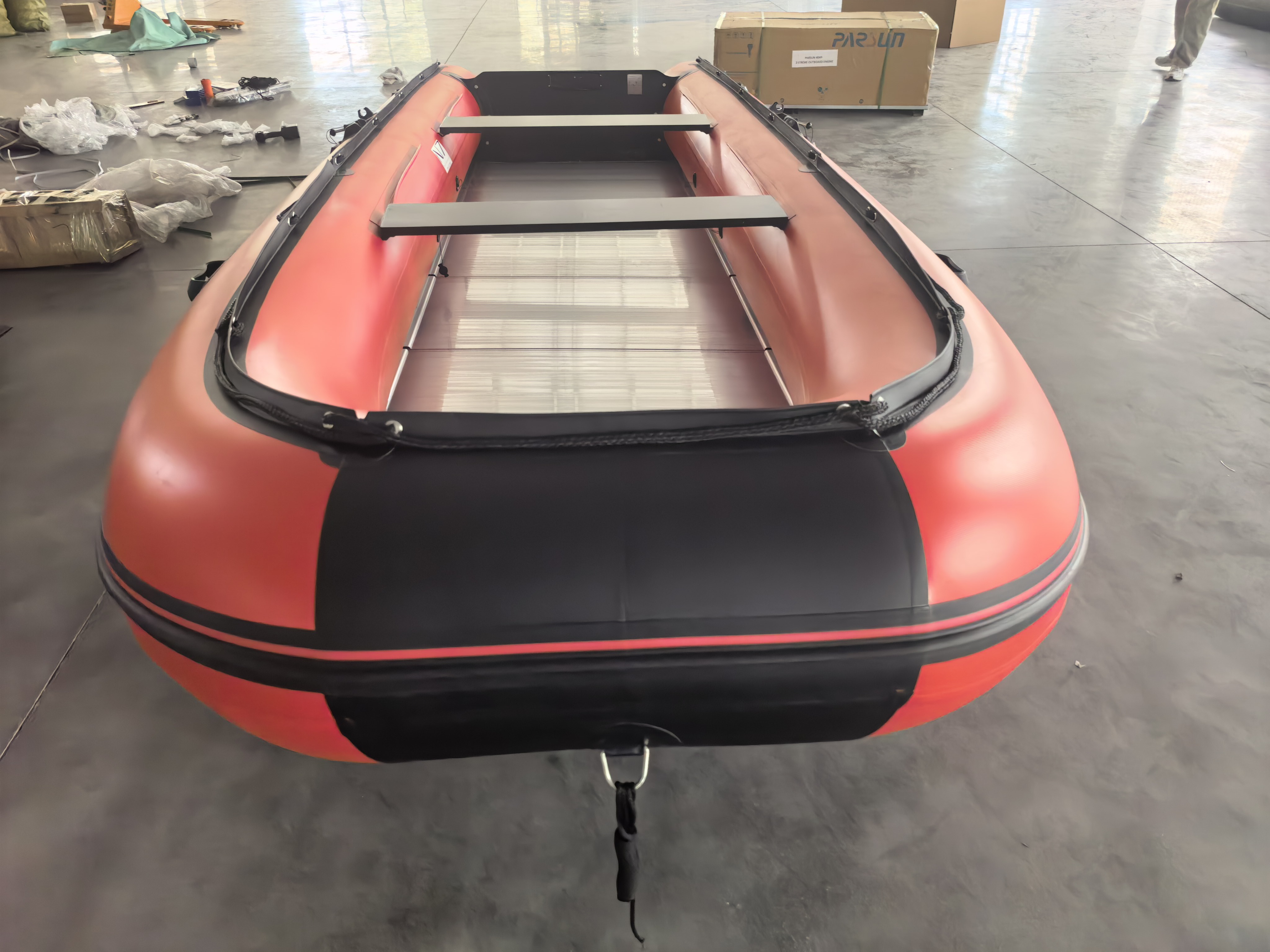

Customization and OrderingOrders start at 10 sets, and a sample takes 7 days. Tell us three things and we will match the boat to your project.
|
Color options
BlackRedYellowDark blueSky blueOrangeLight grayDark gray
|
||||||||||||||||
Field Repair in Four StepsA small puncture should not end a mission. Every set ships with a repair tool set, and the patch method below needs only basic tools.
|

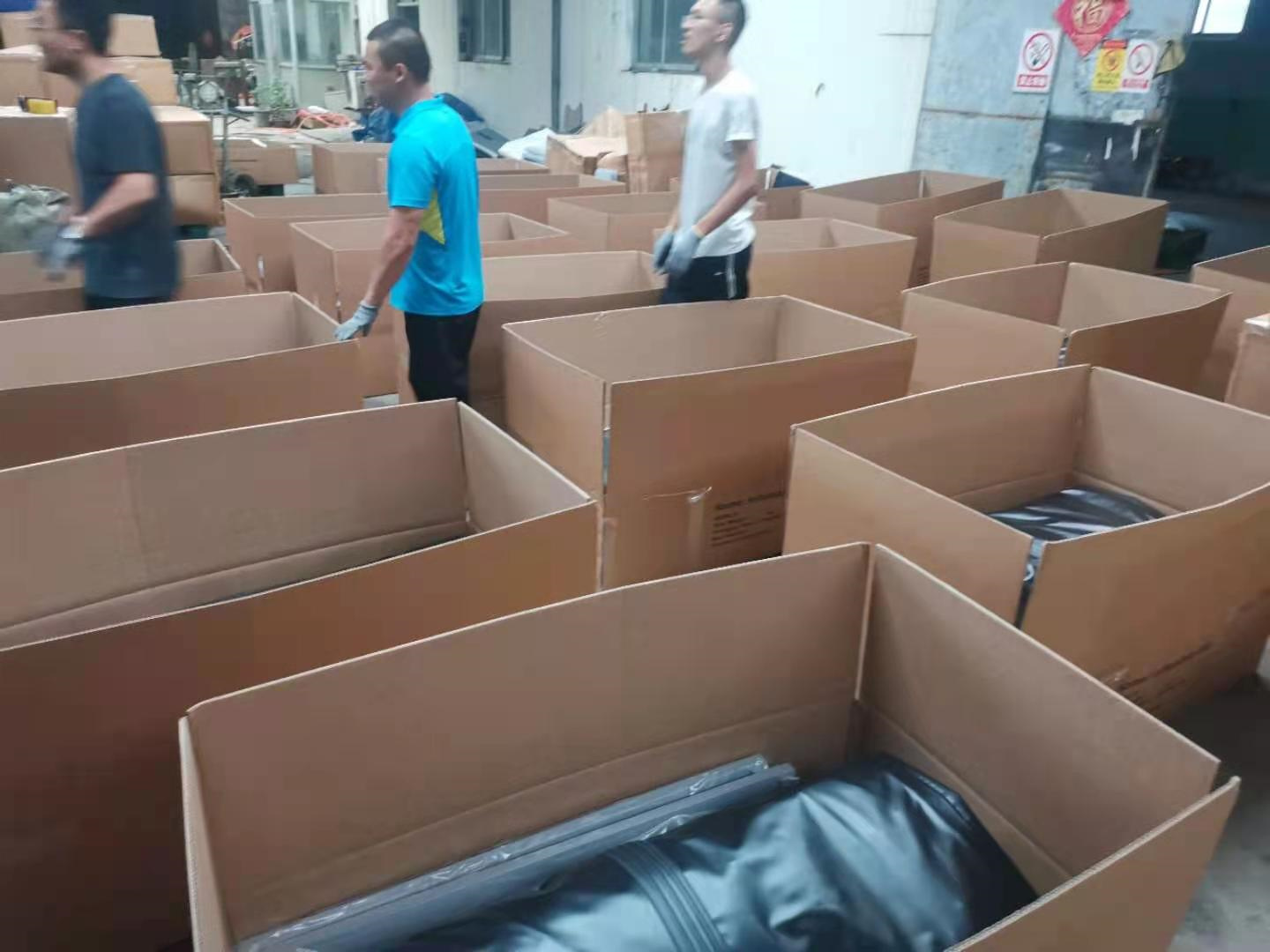

Production and Manufacturer ExperienceCWTC (Tianjin) Technology Co., Ltd. builds military camp systems, field hospital solutions, disaster relief infrastructure and luxury glamping. Project countries include Poland, the UK, Egypt, Kenya, Uganda, Rwanda, Tanzania, the Philippines, Malaysia, Costa Rica and Ecuador.
Learn more about CWTC or browse our project cases. |
Material Test Reports
Two third-party reports back the material data on this page. Contact us for the full documents.
Boat Fabric Report HAPER19120127R1Seven tests on boat fabric: mass per unit area, abrasion, chemical resistance, tensile strength, burning behavior, lightfastness and heat ageing. Full figures are in the Material Test Data tab above.
|
Soluble Heavy Metal Report MYT20210225303Eight elements were all below the 2.5 mg/kg detection limit, far under the stated allowed limits. The element table is in the Material Test Data tab above.
|
Pneumatic Rescue Boat FAQ
Hover over a question to read the answer.
|
Q1
|
What are the size, capacity and hull material of the pneumatic rescue boat? |
A. The boat is 550 cm by 200 cm, carries 14 to 15 people and up to 1,400 kg, and takes a 40 to 60 HP outboard motor. The hull and 5+1 air chambers use 1.2 mm PVC, with 0.9 mm available. Fabric tests on 0.93-0.95 mm boat fabric showed 78.6 MPa tensile strength and no change after 168 hours at 70°C.
|
Q2
|
Which documents can you provide for customs clearance? |
A. We can supply the test reports shown on this page: boat fabric tests under report HAPER19120127R1 and a soluble heavy metal test under report MYT20210225303. Other shipping and customs papers follow your purchase contract. Tell us your destination country, and we will confirm which papers your port needs.
|
Q3
|
What are the MOQ, lead time and warranty? |
A. The MOQ is 10 sets. A sample takes 7 days, and bulk orders take 30 to 45 days depending on quantity. The whole boat carries a 12-month warranty. Each set packs to 136 x 81 x 50 cm, and a 20GP container holds 26 sets while a 40HQ holds 75 sets.
|
Q4
|
What comes with the boat, and how do I repair a puncture? |
A. Each set includes the boat, a thickened aluminum alloy floor, two aluminum alloy paddles, two seat boards, a canvas carry bag, a foot-operated air pump and a repair tool set. To patch a puncture, clean the spot, glue on a slightly larger patch in two thin coats, warm it with a hair dryer, then press it down and leave it for 8 hours.
|
Q5
|
Can you customize the boat, and what do you need to quote? |
A. Yes. Size, color, material (PVC or rubber, 0.9 mm or 1.2 mm) and assembly options can all be customized, and logo printing is free. Choose from eight colors: black, red, yellow, dark blue, sky blue, orange, light gray and dark gray. For a quote, send the quantity, mission, crew size and delivery port.
