What Is an Inflatable Medical Tent?
An inflatable medical tent is a clinic shelter with an air-filled beam frame instead of poles. The CWTC inflatable medical tent offers 35 m² (7 m × 5 m × 3.4 m), a 650 g/m² PVC-coated polyester cover, a 400 gsm insulated lining and an anti-slip floor, for triage, treatment or vaccination outside a hospital.
Watch the 35 m² Inflatable Medical Tent Go Up in 10 Minutes
The video covers setup in about 10 minutes, four wide doors, wind force 8–10, 15 cm snow load and open or partitioned layouts. Watch it on YouTube if the player does not load.
Buyers of field clinic shelters usually weigh an air beam inflatable medical tent against a traditional frame tent. This guide compares them on setup, weather, layout and scaling.
35 m²
floor area
~10 min
setup with air pump
4 doors
2.00 m × 2.05 m each
7–10 days
lead time, MOQ 1 set
3 Factors That Decide How to Choose an Inflatable Medical Tent
1. Setup speed

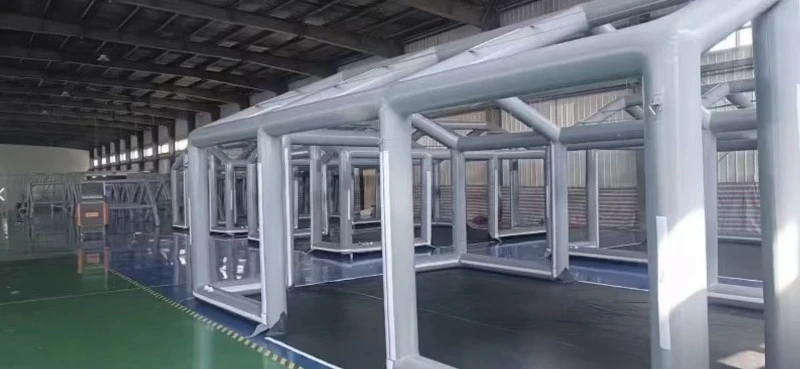

No poles: one or two people spread the tent flat and an electric air pump inflates it in about 10 minutes, even without a concrete base.
2. Weather protection

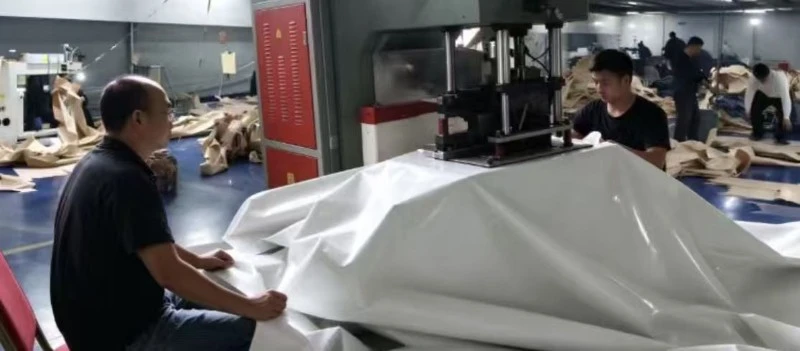

A 650 g/m² PVC cover with heat-welded seams, rated –30 °C to +70 °C, plus a 400 gsm lining. The frame is built for wind force 8–10 and 15 cm of snow.
3. Patient flow and expansion

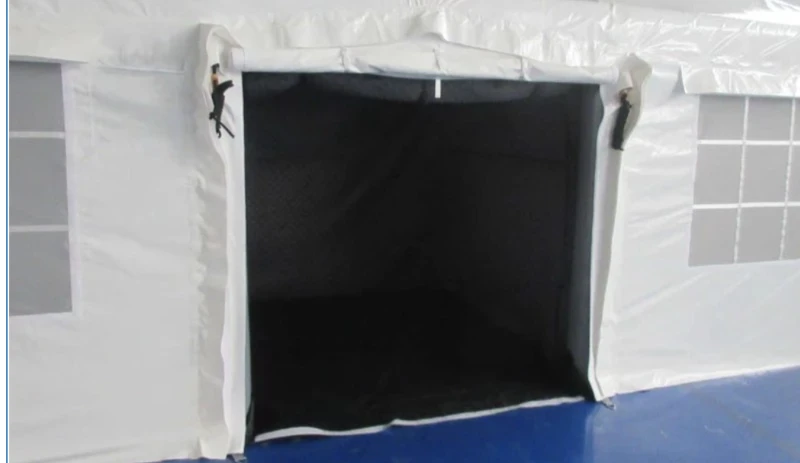

Four 2.00 m × 2.05 m doors keep stretcher and supply routes apart. Zip-and-Velcro connection sleeves link tents from any of four sides.
Inflatable Medical Tent vs Frame Tent: Side-by-Side
| Criterion | CWTC 35 m² inflatable medical tent | Frame tent (typical) |
| Setup time | About 10 minutes with an electric air pump | Assembled piece by piece; time grows with size |
| Crew | 1–2 people | Usually more people and hand tools |
| Rain tightness | Heat-welded seams | Stitched seams depend on workmanship |
| Layout change | Removable partitions; link on four sides | Fixed frame; re-erect to change |
| Power on site | Electric pump needed for inflation | None for the frame itself |
| Best fit | Rapid-response, temporary sites | Long-term fixed sites |
The frame tent column describes typical steel or pole-and-canvas tents, not a specific brand.
Decision Table: Which Setup Fits Your Scenario?
| Scenario | Recommended setup |
| Vaccination point or ward | Inflatable tent, Design 1 (one open room) |
| Separate screening, consultation and treatment | Inflatable tent, Design 2 (three rooms, removable walls) |
| Remote disaster clinic, no concrete base | Inflatable tent |
| Clinic that must grow | Several linked inflatable tents |
| Permanent fixed-site clinic | Frame tent or permanent structure |
| Beyond wind force 8–10, 15 cm snow or –30 °C to +70 °C | Ask CWTC first; see its extreme cold weather tent (–55 °C to +70 °C) |
Limits to Know Before You Buy
- ✦ One tent is 35 m²; larger clinics need several linked tents.
- ✦ Inflation uses an electric air pump, so plan a power source.
- ✦ The tent is a shelter; clinical equipment is specified separately.
- ✦ The WHO EMT scheme classifies medical teams, not tents, and the CWTC page does not claim EMT compliance.
4-Step Checklist Before You Order
- 01
Define clinic zones.One team in one area suits Design 1; separate screening, consultation and treatment suit Design 2.
- 02
Check the site.Wind force 8–10, 15 cm snow load, –30 °C to +70 °C for the cover fabric, and a B2 (DIN 4102) cover fabric rating.
- 03
Plan power and groundwork.The Rwanda Red Cross package added a 50 m cable reel, an LED lamp, a folding shovel, a hammer and rubber flooring (4 pieces per tent).
- 04
Plan logistics.A 20GP holds 14 sets (490 m² of floor area) and a 40HQ holds 40 sets (1,400 m²); lead time is 7–10 days.
Field Record: Rwanda Red Cross, 2025
In 2025 CWTC supplied 35 m² inflatable medical tents in two layouts to the Rwanda Red Cross, with lighting, power and groundwork equipment. Read the project case. The air beam fabric flame test (GB/T 5455-2014, report No. 2201F0267) shows after-flame 0 s and no melting or dripping.
Buyer FAQ: 35 m² Inflatable Medical Tent
About 10 minutes with an electric air pump. One or two people lay the tent flat before inflation, and no poles are needed.
Within published limits, yes. The frame is built for wind force 8–10 and 15 cm of snow, and the 650 g/m² cover has heat-welded seams. The cover fabric is rated –30 °C to +70 °C. For harsher sites, send CWTC your climate data before ordering.
Pick Design 1, one open 35 m² room, for a ward, vaccination point or supply store. Pick Design 2, three rooms with removable partition walls, to separate screening, consultation and treatment. The partitions can be removed later.
CWTC does not publish a list price; the quote depends on layout and equipment. MOQ is 1 set, lead time is 7–10 days and the warranty is 12 months. One set packs at 1.1 m × 1.2 m × 1.3 m and 210 kg; a 20GP holds 14 sets and a 40HQ holds 40 sets.
WHO emergency medical team classification applies to medical teams, not to tents, and the CWTC product page does not claim EMT compliance. If you operate or support a classified team, confirm with CWTC that the tent layout fits your clinic plan.
If speed and flexible layouts decide your project, an inflatable field hospital tent is the practical start. See also the mobile hospital range and the mobile hospital equipment guide.
